Refilling is one example of where sustainability starts. Why buy a new spray bottle every time you need household cleaner when there is now an efficient and eco-friendly way to refill your bottle? This was the motivation for Greiner Packaging to team up with its in-house design agency DesPro and develop a new refill concept for plastic spray bottles for household chemicals.
The many benefits of refilling

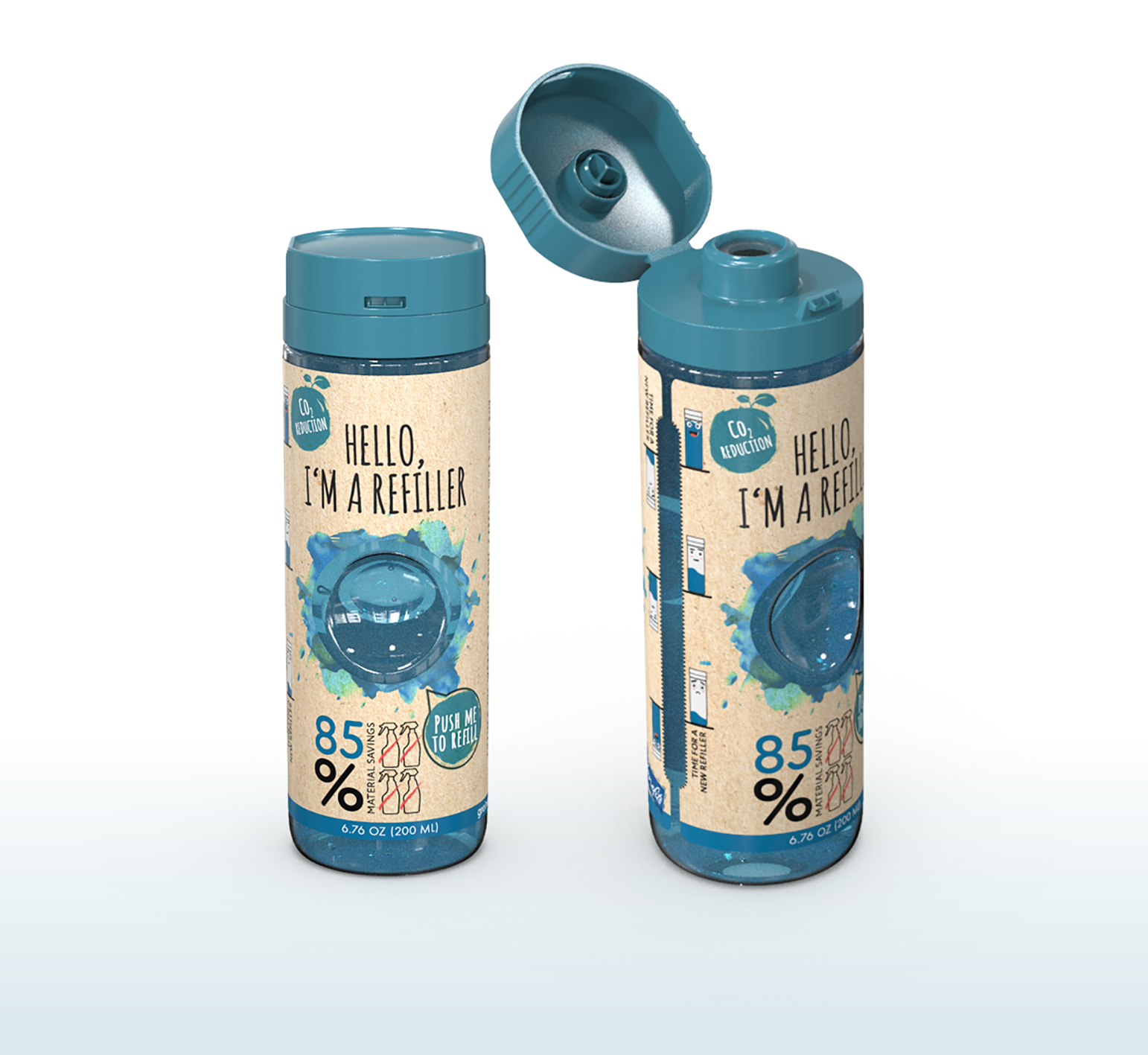

The newly developed 200-milliliter refill bottle is made of HDPE, PP, or PET material and weighs just around 16 grams in its original form. It contains 200 ml of concentrate, which later produces ten times its liquid volume across four spray bottle refills. Each safe, 50 ml dose can also be adjusted to 30 ml or 40 ml. This is done through a special valve and a guiding nozzle that fits into all standard spray bottles. Thanks to their shape, the new refill bottles make it easy for consumers to squeeze out their contents in consistent doses – plus, they can be provided with an attractive label. In addition, the nonremovable, hinged snap-on lid is fitted with a safety lock. And a user-friendly level indicator completes the list of practical features. As a result, the newly designed bottle is well placed to meet all current market requirements.
Up to 85 percent less plastic used
Greiner Packaging is committed to advancing a sustainable circular economy that, in addition to recycling, also delivers reductions in plastic material use. Consumers can get as much out of a single new refill bottle as they otherwise could from four separate plastic spray bottles, including trigger sprayers – over its lifecycle, original 500 ml spray bottles and trigger sprayers can produce 10,000 individual 1-ml sprays, ensuring that they can be used to its maximum potential.
More eye-catching on the store shelf
The new refill bottles developed by Greiner Packaging and DesPro ensure a more eye-catching look at the point of sale than other refill packaging solutions simply because of their size. They also have a large surface area that can be designed or decorated attractively for consumers.
Outer packaging is no longer strictly necessary here, which further reduces material use while underscoring the sustainable approach. The simple, intuitive, and safe dispensing process makes the bottle extremely consumer friendly. And the option of producing the entire bottle from PCR plastic makes this already cost-effective solution even more sustainable.
Maximum flexibility and recyclability
The refill bottle can be made of HDPE, PP, or PET according to the customer’s preference, while the lid can be made from HDPE or PP. Greiner Packaging puts great emphasis on ensuring that the overall packaging is as recyclable as possible. This same approach is consistently applied when it comes to the selection of materials and decorative elements, and the plastics experts consult individually with customers on each project in line with the principles of a circular economy. The valve included in the lid enables the product to be dispensed in an ideal manner with a high degree of precision. This valve part can be mechanically separated later in the recycling process, which increases the recyclability of the packaging solution as a whole.
When using labels for decoration, Greiner Packaging recommends that a compatible material is selected to allow for maximum recyclability. This factor comes into play in a number of contexts: when using water-soluble adhesives, when considering the potential effect of the decorative material on the base material used, and – if necessary – when assessing whether the decorative material may be separated from the base material due to the use of different material densities.
Packaging facts
Bottle:
- Technology: ISBM/EBM
- Decoration: Label possible
- Material: HDPE, PP, PET
Closure:
- Technology: injection molding
- Material: PP/HDPE
- Special features: fliptop cap with guiding nozzle and valve
